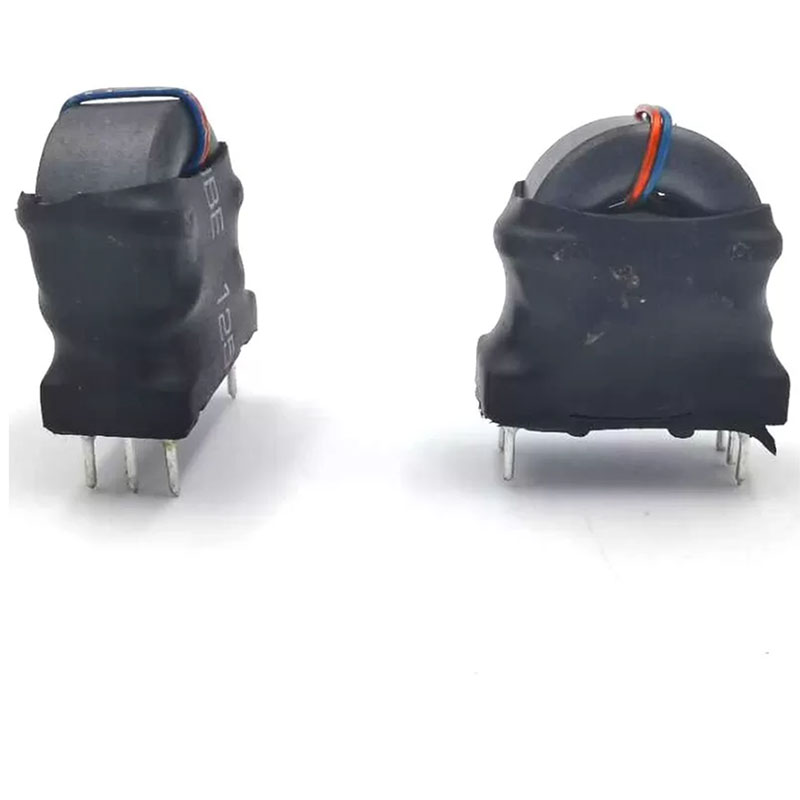

Introduction:

1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly

Application:

1. Low Frequency AC Reactor
2. Solar Power System
3. Power Conditioning System
4. Wind Power System
5. Automatic Drive Machine
6. Induction Heater
7. Welding Machine
8. Paper Industries
9. RFI Suppression Choke
10. DC/DC converters
11. IP and OP devices
company

Products Advantages:

1.Low loss
2.Excellent reliability
3.High Efficiency
4.Easy installation
5.It can be customized according to the requirements of customers and provide total design solutions to customer

Feature:

•  High current capacity
•  Low core loss at frequency
•  High reliability, efficiency
•  Small packaged size
•  Operating Temperature: -30°C to +80°C
•        Electrical Specifications at 20°C
