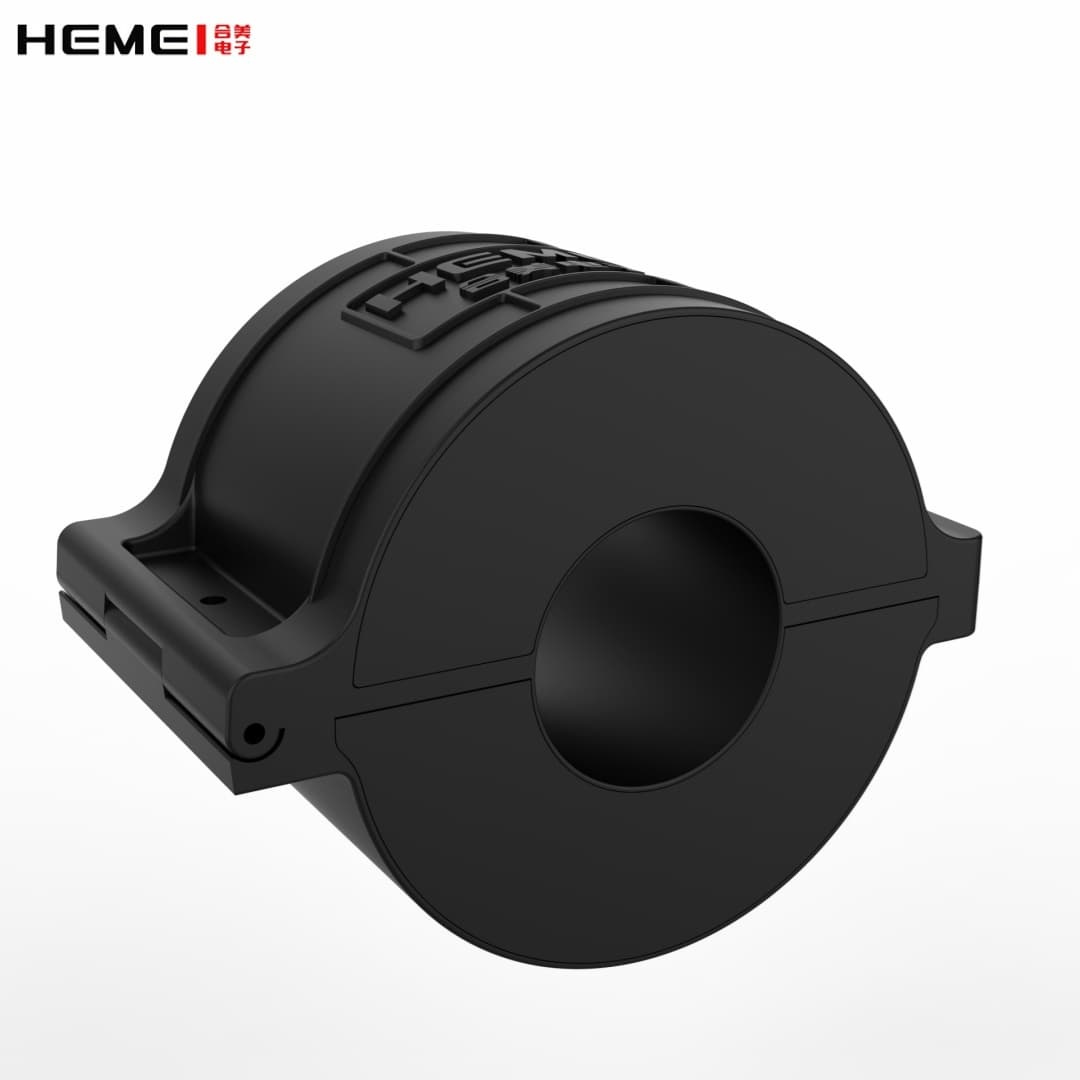

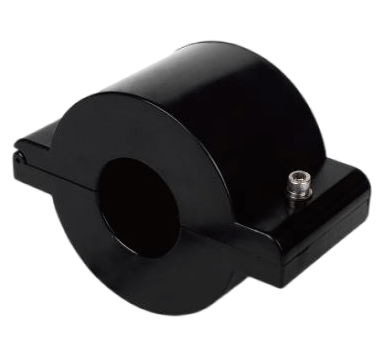

Designed with advanced technology and engineering expertise, our harvesting energy CT products ensure accurate monitoring and extraction of current.
Work temperature :
-40℃~70℃Protection level :
IP68Certification :
CE, ULFrequency :
50~60HzFire resistance property :
UL94-VoOutput Power :
10A/0.5WInner diameter :
40mmWorking principle:
The harvesting energy current transformer transmits electrical quantities through the principle of electromagnetic induction; and based on the ratio value of the primary and secondary sides, it converts the large current in the primary side of the power system into the small current used by the secondary equipment.
Feature:
1. The harvesting energy CT is of open structure, easy to install and operate.
2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.
3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

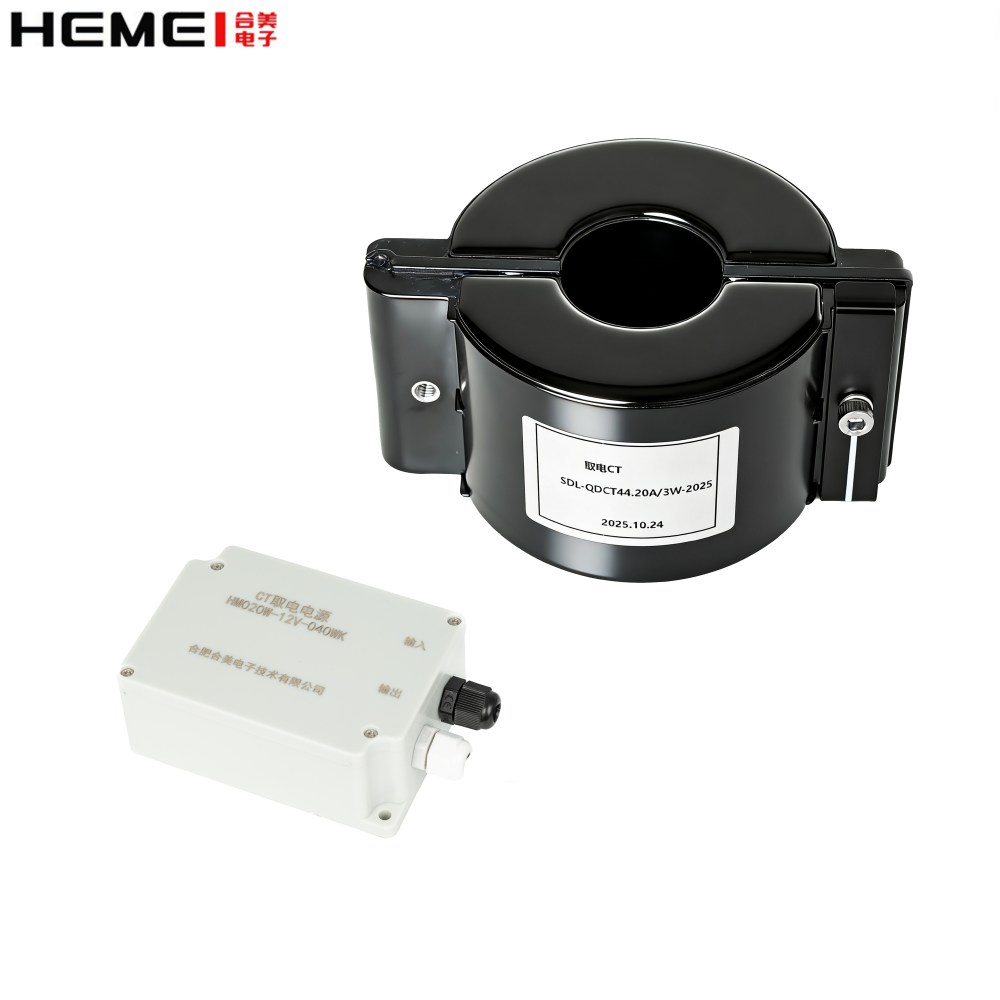

4. Energy transformers and induction power modules are used.
5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.
6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.
Application:
High-voltage transmission lines / medium-voltage distribution networks / underground mines / energy consumption monitoring / hydropower and wind power detection / dock shore power / large pump industry / water conservancy monitoring / smart power consumption / smart mines/civilian airports/others Industry application
Output Power |
Inner diameter |
Continuous current |
Waterproof level |
Voltage |
Accuracy |
Core Material |
10A/0.5W |
40mm |
1250A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/3W |
45mm |
1250A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
30A/5W |
45mm |
1250A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
10A/1W |
50mm |
4000A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/3W |
60mm |
1250A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/4W |
120mm |
2000A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/3W |
160mm |
1250A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/5W |
160mm |
1250A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/3W |
160mm |
2000A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |
20A/3W |
180mm |
2000A |
IP65~IP68 |
5~550KV |
0.5 |
permalloy / silicon steel |

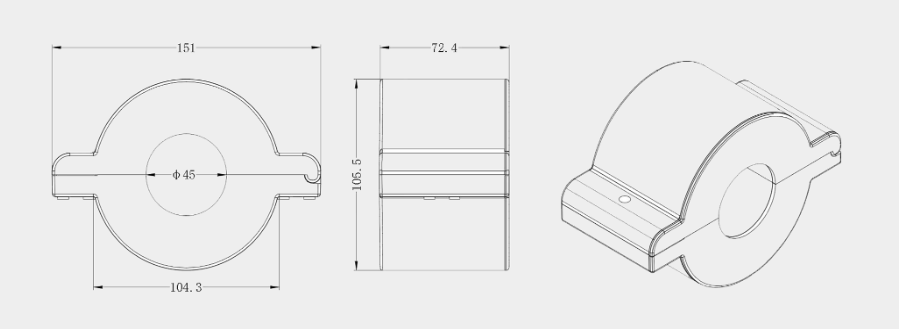

Dimension drawing:
As an leading manufacturer of Harvesting Energy Current Transformer products, Hemei Electronics provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Current Transformer quickly!
