The high-precision transient wave recording energy-taking housing serves not only as the insulating protective enclosure for split-core energy harvesting CTs, but also acts as a core structural carrier that maintains a constant magnetic circuit gap to ensure accurate acquisition of power grid fault transient waveforms and stable energy harvesting via busbar induction.
Work temperature :
-40℃~75℃Protection level :
IP68Certification :
CE, ULFrequency :
50～60HzFire resistance property :
UL94-VoOutput Power :
1A / 5mWInner diameter :
60mmWorking principle:
With a perfect team of talents, many actual engineering cases and rich experience, Hemei Electronics has accumulated a lot of engineering application experience in various industries. Our harvesting energy current transformer is tested by practical application, widely praised.
Application：
High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application
Feature:
1. The harvesting energy CT is of open structure, easy to install and operate.
2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.
3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.
4. Energy transformers and induction power modules are used.
5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.
6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.

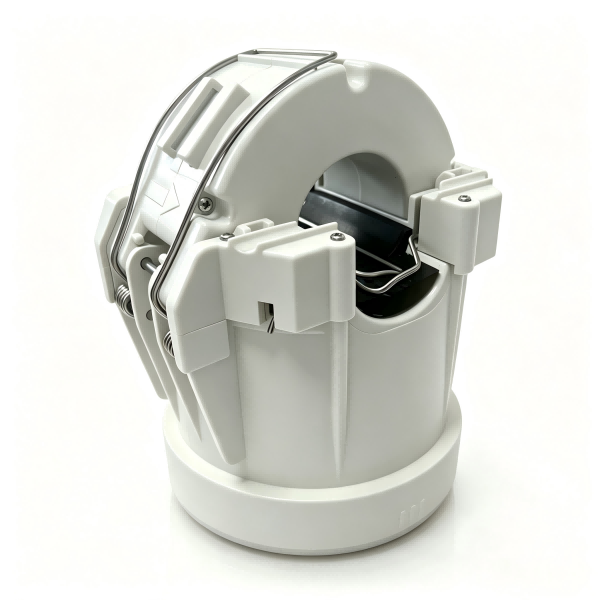

The High-precision CT Housing
| Electrical Parameter |
Typical Current Sampling Accuracy |
<±0.5% |
|
Power Supply Capacity |
With input current of 1 A and load resistance of 1.8 kΩ, the output voltage shall be greater than 3.1 V. |
|
|
Protective Capability |
IP68 |
|
|
Flame Retardant Rating |
UL94-V0 |
|
|
Working Temperature |
-40~75 ℃ |
|
|
RH |
<95%RH |
|
|
Altitude |
<4000 Meter |
|
|
Installation Method |
Cup Bracket Mounting |
Drawing：
Services process:
Raw material control - production and processing - product manufacturing - finished product testing - finished product warehousing - after-sales quality tracking
By leaving a message below to get more details about harvesting energy Current Transformer quickly!
