26mm Split-Core Power Harvesting Current Transformer for Overhead Power Line Monitoring

26mm Split-Core Power Harvesting Current Transformer for Overhead Power Line Monitoring

Product Overview

The 26mm Split-Core Power Harvesting Current Transformer is designed for applications requiring energy harvesting from overhead power lines. Its split-core structure allows the transformer to be installed around an existing conductor without disconnecting the primary cable, subject to the installation requirements of the specific model.

This power harvesting current transformer can be integrated into suitable power line monitoring systems to provide harvested electrical energy for compatible electronic devices. Actual output performance depends on the primary conductor current, operating conditions, transformer design, and connected load.

Operating temperature :
-40℃~70℃
Certification :
CE, UL
Frequency :
50～60Hz
Fire resistance property :
UL94-Vo
Output Power :
10A / 1W
Inner diameter :
26mm

Inquiry now

Product Details

Working Principle

When AC current flows through an overhead power line, it generates a magnetic field around the conductor. The magnetic core captures this magnetic field, and the secondary winding converts the induced magnetic energy into electrical energy.

The harvested energy can be used as an auxiliary power source for compatible monitoring equipment, sensors, and communication modules. Actual output power depends on the primary line current, core characteristics, winding configuration, connected load, and power conditioning circuit.

Application

Overhead Power Line Monitoring/Overhead Distribution Line Monitoring/Smart Grid Monitoring/Overhead Conductor Temperature Monitoring/Conductor Sag Monitoring/Power Line Icing Monitoring/Fault Indicator Power Supply/Power Line Fault Detection/Partial Discharge Monitoring/Power Line Condition Monitoring/Remote Power Line Monitoring/Smart Distribution Monitoring Devices/Substation Equipment Monitoring/Switchgear Monitoring/Busbar Monitoring Systems/Circuit Breaker Condition Monitoring/Underground Power Cable Monitoring/Distribution Automation Systems,etc.

Power Transmission & Distribution

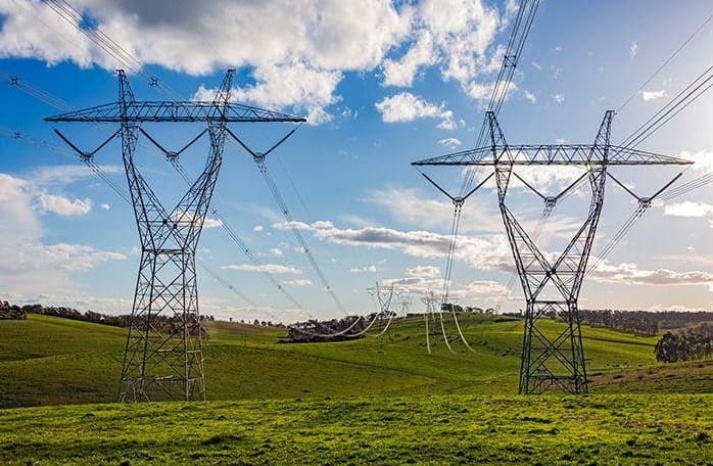

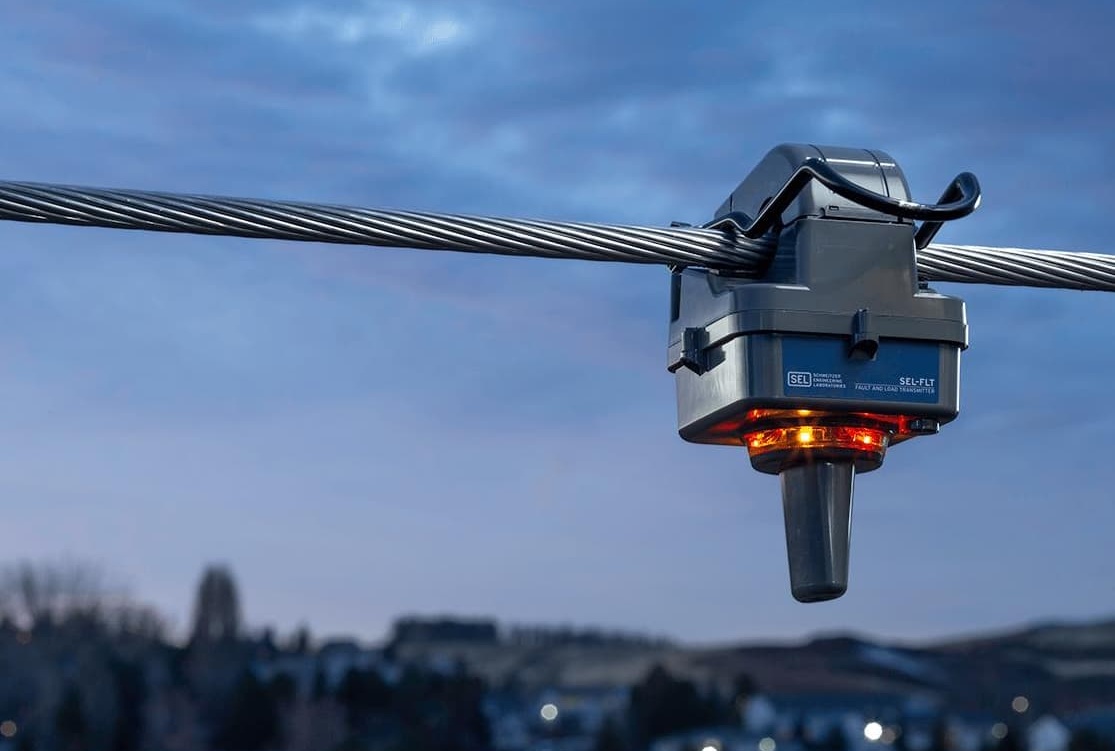

Overhead Power Line Monitoring

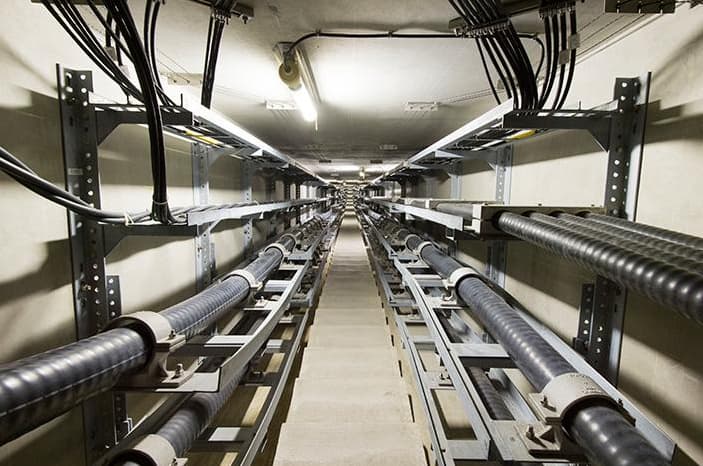

Underground Cable Monitoring

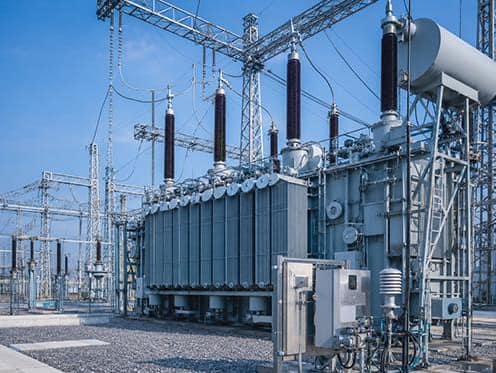

Substation Monitoring

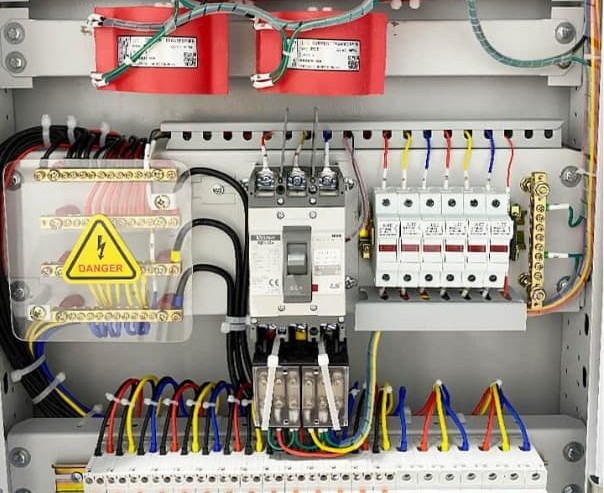

Switchgear & Distribution Cabinet Monitoring

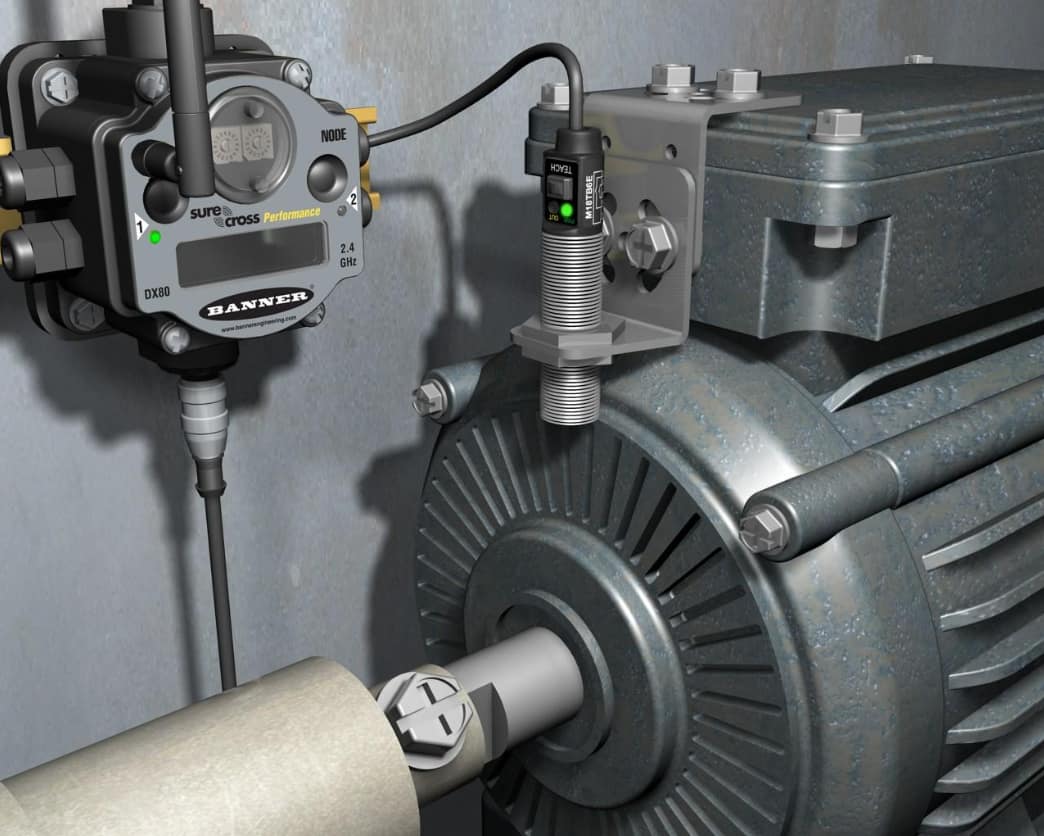

Industrial Equipment Condition Monitoring

Feature

1. The harvesting energy CT is of open structure, easy to install and operate.

2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.

3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

4. Energy transformers and induction power modules are used.

5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.

6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.

Harvesting Energy CT can be customised

Rated Output Power	Rated Output Current	Inner diameter	Max Work Current	Waterproof level	Voltage	Max Current
24mW	5A	26mm	1000A	IP67	5～550KV	25KA/2s
100mW	10A	26mm	1000A	IP67	5～550KV	25KA/2s
3W	20A	45mm	1250A	IP66	5～550KV	25KA/2s
5W	30A	45mm	1250A	IP66	5～550KV	25KA/2s
1W	20A	60mm	1250A	IP68	5～550KV	25KA/2s
2W	30A	60mm	1250A	IP68	5～550KV	25KA/2s
2W	20A	160mm	1250A	IP68	5～550KV	25KA/2s
4W	30A	160mm	2000A	IP68	5～550KV	25KA/2s

Split Core Current Transformer

Dimension drawing

Services process

Raw material control - production and processing - product manufacturing - finished product testing - finished product warehousing - after-sales quality tracking

By leaving a message below to get more details about harvesting energy Current Transformer quickly!
