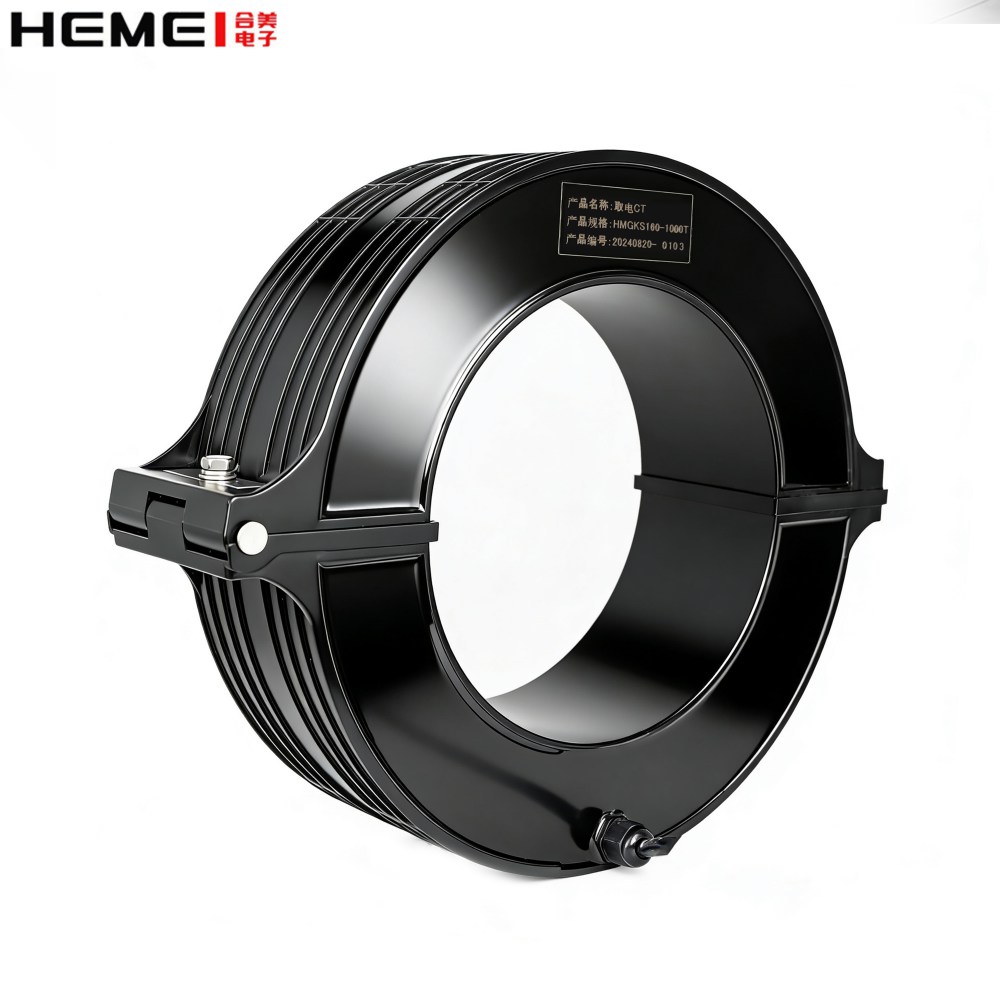

160mm ID IP68 Power Harvesting Current Transformer for Underground Cable Monitoring

160mm ID IP68 Power Harvesting Current Transformer for Underground Cable Monitoring

Product Overview

This 160mm inner diameter power harvesting current transformer is designed for energy harvesting applications on underground power cables. It captures energy from the magnetic field generated by an energized AC conductor and can be used with a compatible AC/DC power conversion module to supply power to cable monitoring equipment.

With an IP68-rated enclosure, this product is designed for applications requiring a high level of dust and water ingress protection, subject to the specified installation and testing conditions.

Key Features

• 160mm inner diameter for compatible cable installations

• IP68-rated enclosure

• Designed for power harvesting from energized AC power cables

• Can be paired with a compatible AC/DC conversion module

• Suitable for underground power cable monitoring and related energy harvesting applications

Typical Applications

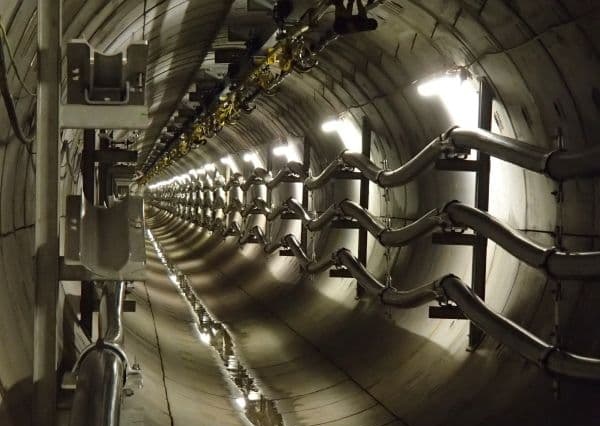

• Underground power cable monitoring systems

• Online electrical equipment monitoring

• IoT-based cable monitoring devices

• Auxiliary power supply for compatible monitoring sensors

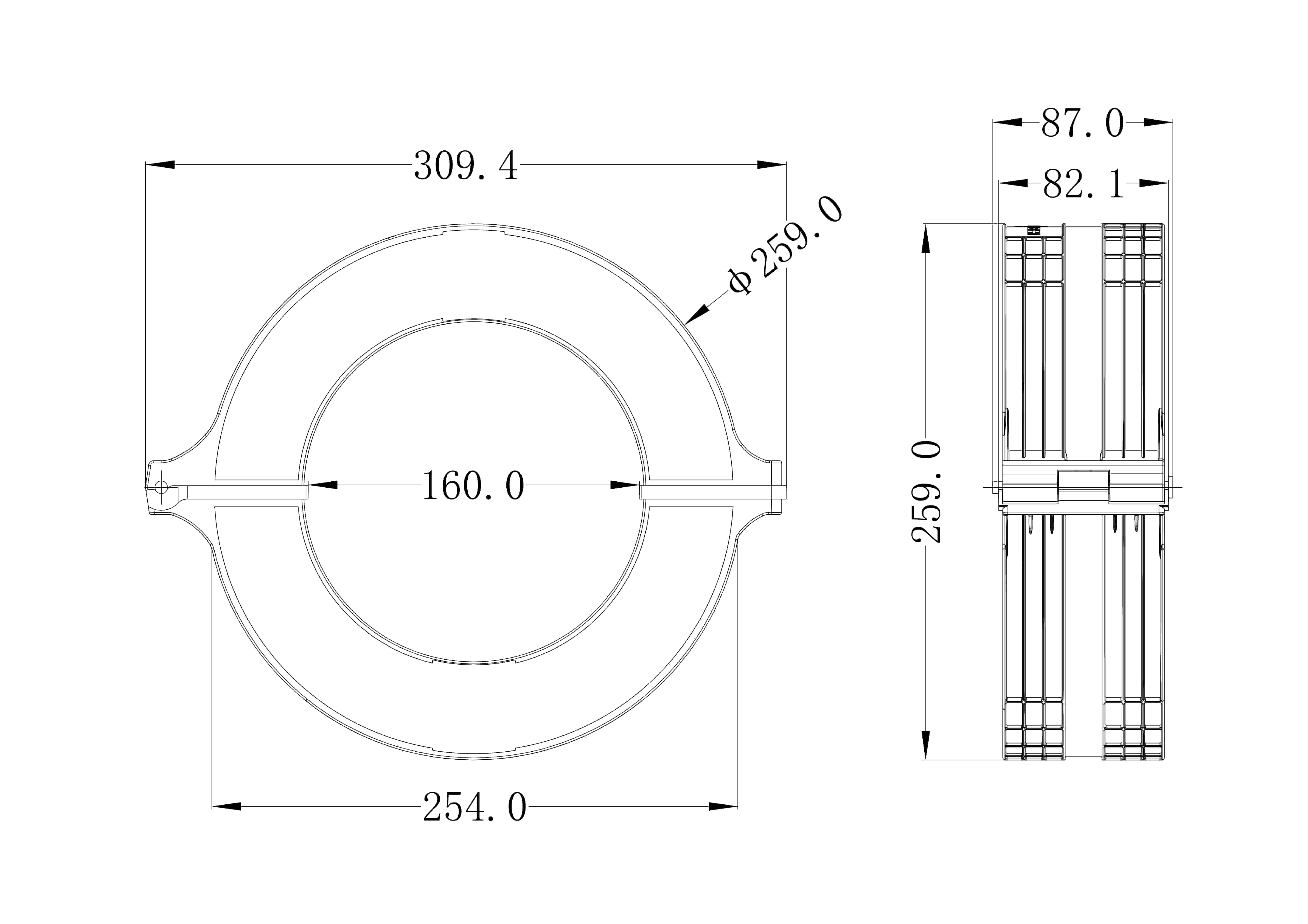

Product Drawing

Technical Specifications

Available specifications may include primary and secondary current ratings, accuracy class, rated burden (VA), inner diameter, and installation structure.

Please contact Hemei with your cable dimensions, rated current, and required accuracy to obtain a suitable solution.

Note: Technical parameters and performance depend on the selected model. Please confirm the specifications before ordering.
